(2) DH-3 type butt welding machine

3. Pre welding current: 00-99 Welding current: 00-99
4. Welding time: adjustable from 1-3ms, accurate to 0.1ms
5. Welding stroke: 25mm, welding height adjustable
7. Best use: Suitable for various welding plates ranging from 0.03 mm to 0.35 mm.

Heating method: electric heating, heating power: 4KW
Dimensions: 1000X250X1000mm

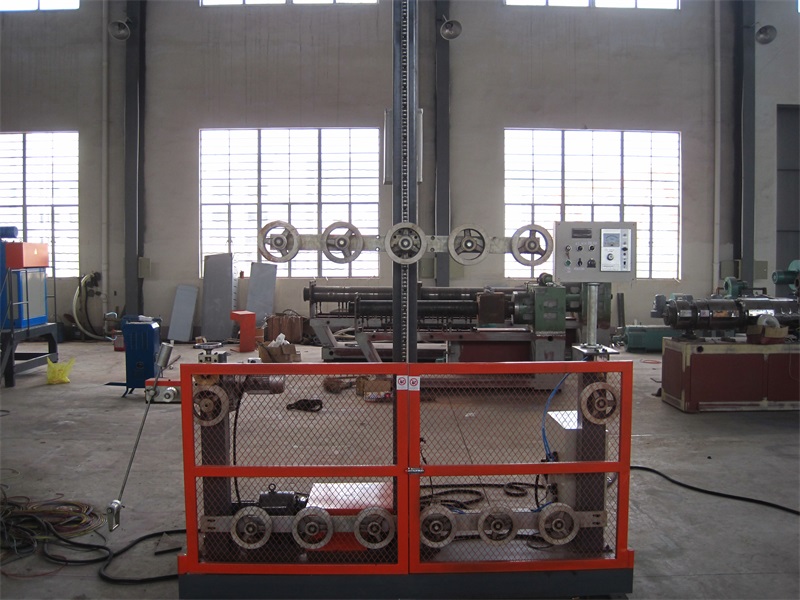

(4) GCC-30 Steel Ribbon Storage Machine

1. Feeding height 1000mm ± 50mm, automatic feeding
2. Storage wheel 13 rounds
3. Store 30 meters
4. The control method is variable frequency speed regulation, and the frequency converter is Delixi
5. Upward power of 0.75KW
6. Output power 0.75KW

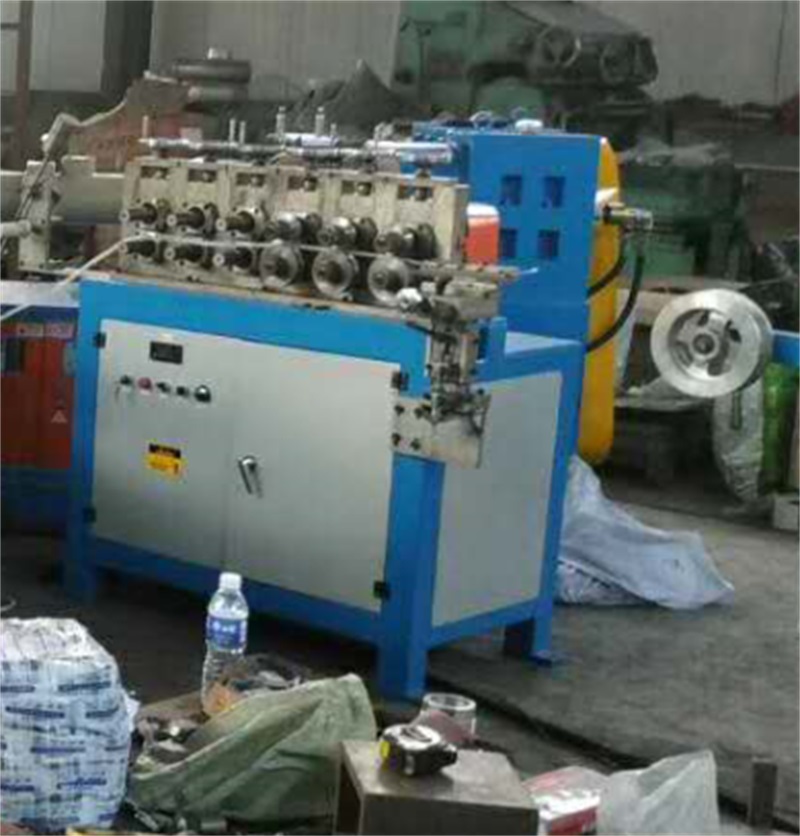

1. Output motor 1.5KW
2. Output speed 1-25M/MIN, variable frequency speed regulation, frequency converter is Delixi
3. Four groups of pre bending adopt gear transmission

1. Screw diameter φ 90mm (double headed right-hand thread)
2. Screw length to diameter ratio L/D 20
3. Screw speed 0-55r/min
4. Feeding port size 220mmX130mm
5. Feeding method: Continuous feeding of cold film
6. Temperature control system, 5-unit mold temperature machine control, 6Kw/unit
7. Production capacity Max340kg/h (with the machine head open)

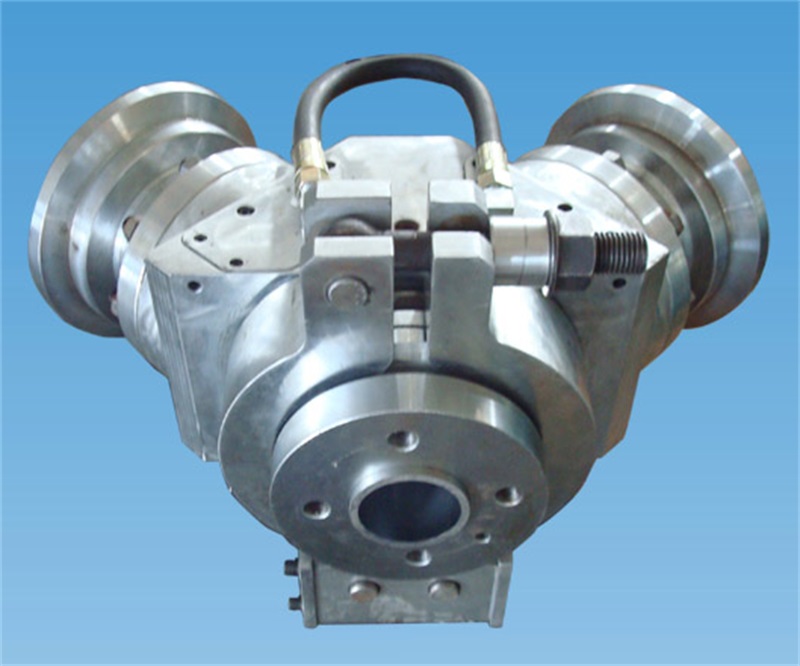

8. Sealing method for glue supply machine head: Haval buckle manual locking
9. Hard tooth surface reducer model ZLYJ250
10. Vacuum pump power 0.75kw, brand
11. The main motor power is 55Kw (frequency converter), and the frequency converter is Delixi

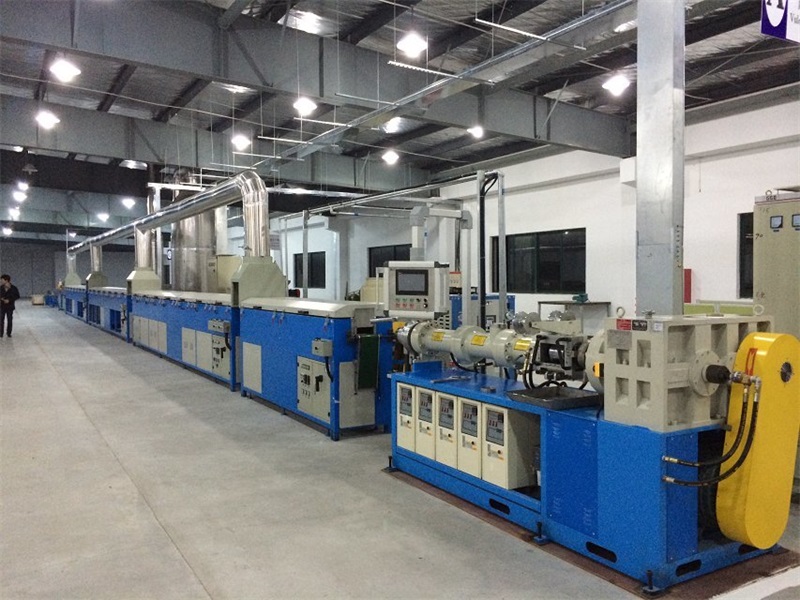

SJ-75 × 20D Cold Feed Vacuum Exhaust Extruder

1. Screw diameter of 75mm (double headed right-hand thread)
2. Screw length to diameter ratio L/D 20
3. Screw speed 0-55r/min
4. Feeding port size 220mmX130mm
5. Feeding method: Continuous feeding of cold film
6. Temperature control system 4 unit mold temperature machine control, 6Kw/unit
7. Production capacity Max280kg/h (with the machine head open)
8. Sealing method for glue supply machine head: Haval buckle manual locking
9. Hard tooth surface reducer model ZLYJ225
10. Vacuum pump power 0.75kw, brand
11. The main motor power is 45Kw (frequency converter), and the frequency converter is Delixi
12. Attention: The 75 extruder can move forward and backward.

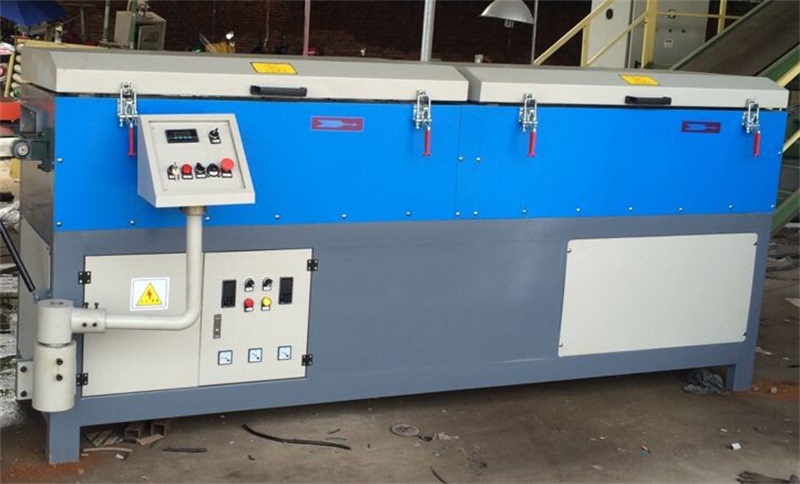

1. Heating method: electric heating
2. Heating power 24KW
3. Conveying method: Metal rollers undergo surface treatment and do not adhere to rubber
4. Material temperature 450 ℃
5. Feed height 1050mm ± 50mm
6. Imported size 180mm × 90mm (W × H), customized according to customer requirements
7. Transmission power 2.2Kw
8. The conveying speed is 2-30m/min with variable frequency speed regulation, and the frequency converter is Delixi
9. Dimensions (length x width x height) 3200 x 940 x 1260mm

1. Microwave output power 10kw
2. Hot air temperature 250 ℃
3. Heating method: electric heating, PID control
4. Hot air circulation fan with high temperature resistance and a power of 1.5kw
5. Conveyor speed 28.5m/min
6. Inner groove material: 1.5mm thick stainless steel plate
7. Microwave system
7.1 Model 2M210 Panasonic
7.2 Output power 0.9kw
7.3 Frequency 2450 ± 60MHz
7.4 High voltage transformer air cooling
7.5 Magnetron 2M210 Air Cooling
7.6 Wave tube 12 sets/set
8. Conveyor belt 180mm wide PTFE coated fiberglass belt, motor power 0.75Kw, frequency converter from Delixi
9. Hot air generation device with electric heating, 1.1Kw high-temperature fan

(9) RF-9 type hot air vulcanization box

1. Heating power of electric heating tube 5KW/piece × 6 pieces
2. Heating temperature: 180-270 ℃
3. Effective sulfurization length 8000mm
4. Hot air circulation fan power 0.75Kw
5. Conveyor speed 2-28 m/min
7. Belt width 180mm
8. The motor power is 0.75kw, and the speed is adjusted by frequency conversion control. The frequency converter is Delixi
9. Insulated box with 1.5mm thick stainless steel plate and insulation layer thickness of 100mm

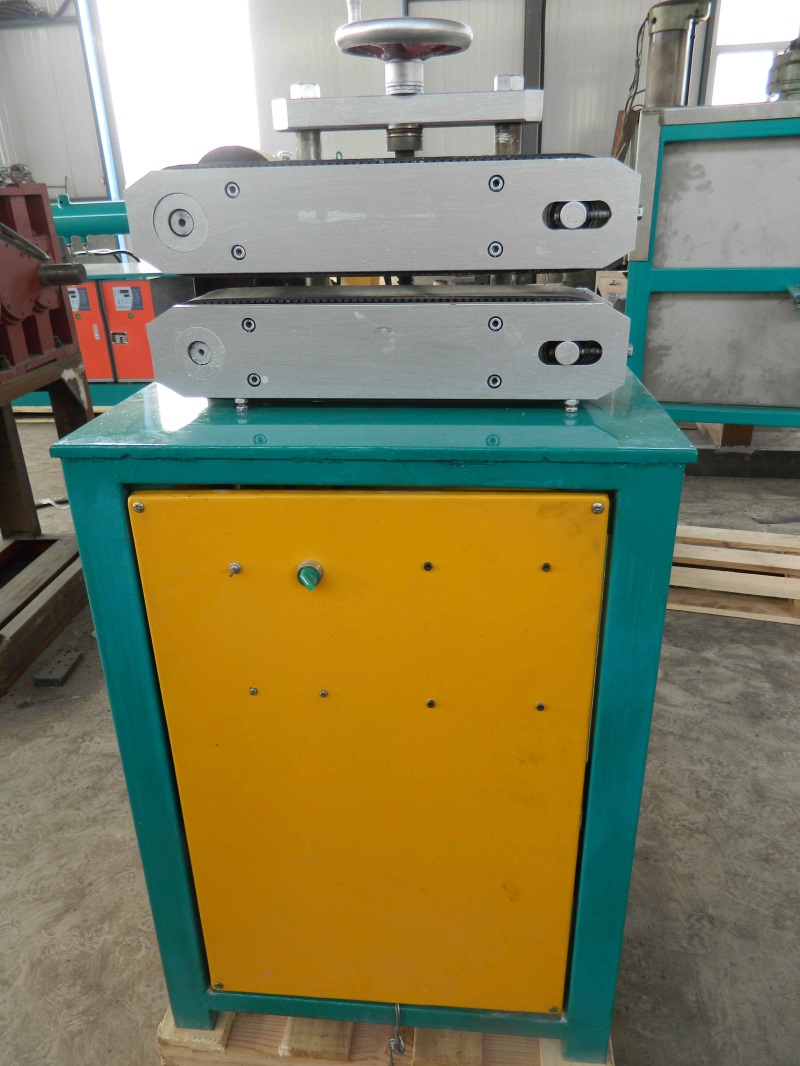

1. Motor: 0.75KW, frequency converter is Delixi
2. Allow up and down adjustment distance: 80mm
3. Adjustable speed, 0-30m/min
4. Dimensions 900 × 700 × 1600mm

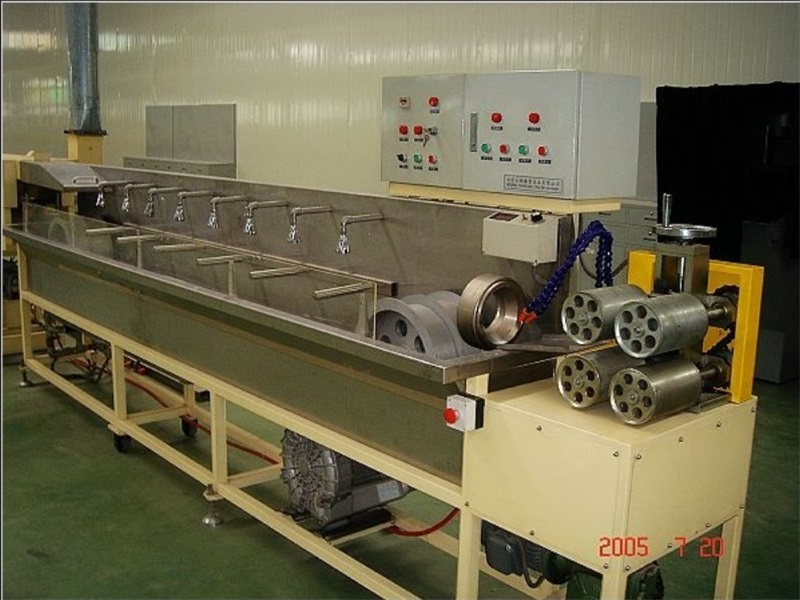

1. Cooling water pressure 0.1-0.2Mpa
3. Circulating water pump power 0.75kw
4. The power of the hair dryer is 1.1Kw, and the air volume is 2.25m3/min
5. Cooling method: Circulating water cooling, the water tank material is stainless steel
6. Traction motor power 0.75Kw (variable frequency speed regulation), frequency converter is Delixi

1. The cutting length can be freely set, which is particularly suitable for the requirements of online production of products.
2. Center height: 1050 ± 50mm
3. Cutting method: Rolling cutting knife
4. Cut products: length 0.2-4.5m
5. Cutting accuracy: ± 5mm
6. Adopting servo motors
