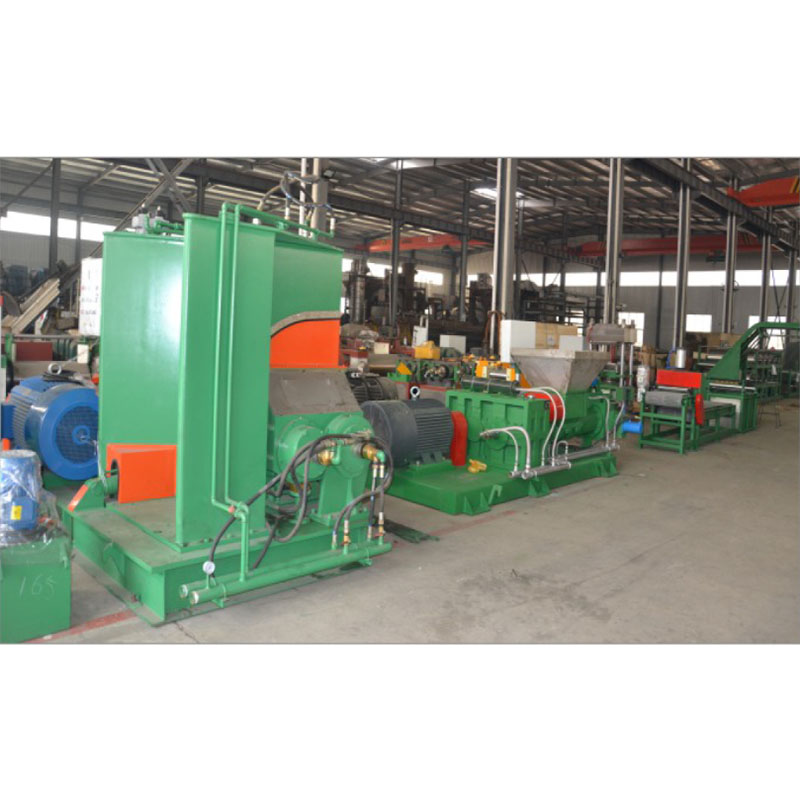

Epdm Granules Production Line

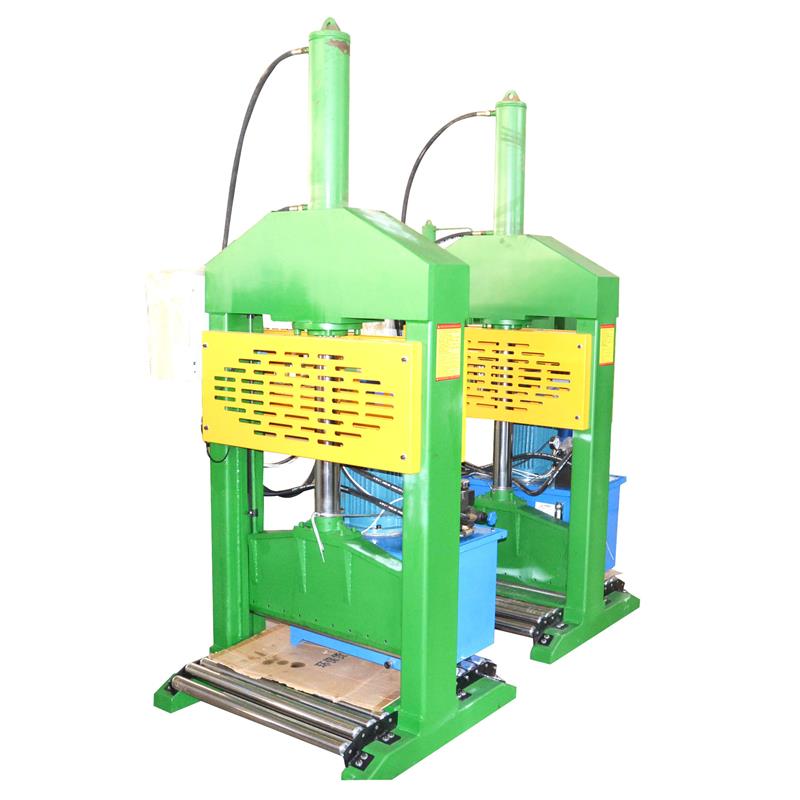

Equipment 1: XQL-80 glue cutting machine, quantity 1 set

Main parameters

1. Knife width 660 mm
2. Knife stroke 680 mm
3. Maximum working pressure 6MPa
4. The height of the workbench above the ground is 450mm
5. Oil cylinder diameter 125mm
6. Maximum working pressure 80kN
7. Oil pump motor power 4 KW
8. The total weight of the machine is about 1200kg

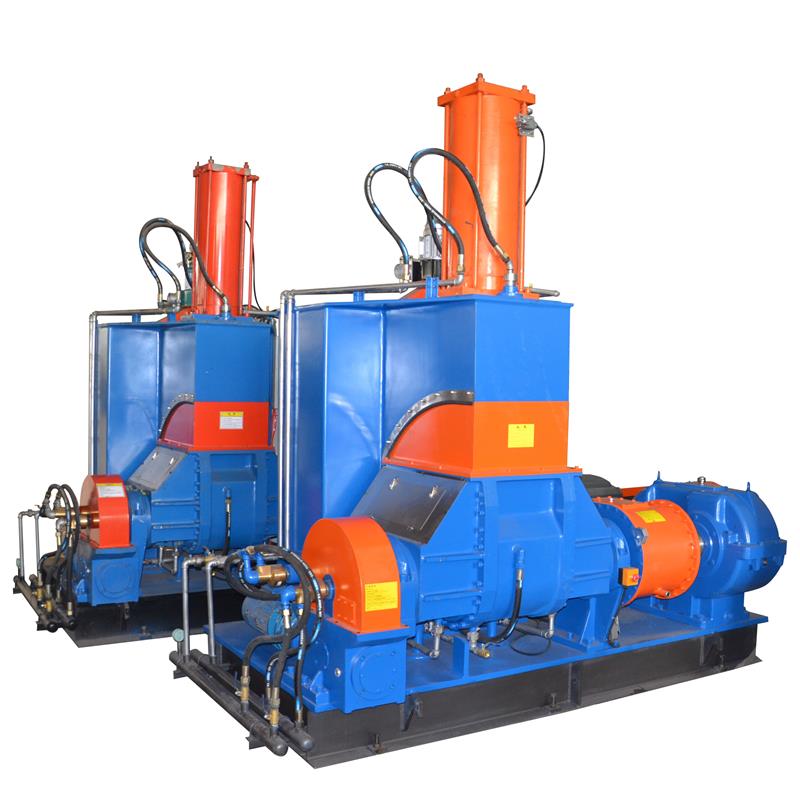

Equipment 2: X (S) N-200L type internal mixer, quantity 1 unit

Main parameters

1. Effective capacity for kneading: 200L
2. Total capacity of mixing room: 440L
3. Rotor type: Two sided shear type
4. Rotor speed (front/rear): 30/24.5r/min
5. Main motor power 280kW
6. Mixing chamber flip angle 135 °
Flip power mechanical flip 11kw
7. Compressed air pressure 0.6~0.8MPa
Compressed air flow rate ≥ 4m3/min
8. Cooling water pressure 0.3-0.4MPa
9. Steam pressure 0.5-0.8MPa
10. Dimensions (length x width x height) 4250 x 3400 x 4215mm
11. Weight approximately 22.5t

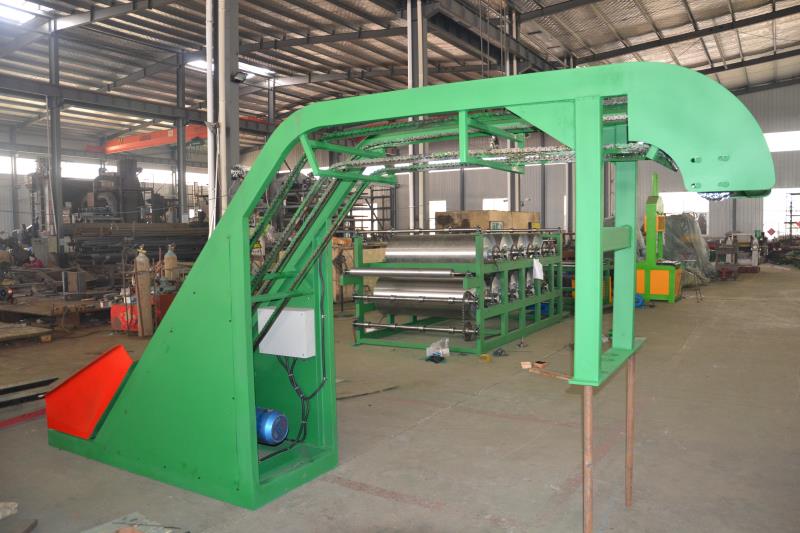

Equipment 3: TSJX-200 bucket elevator, quantity 1 unit

Main parameters

1. Increase speed by 9.5m/min
2. Maximum handling capacity of 270kg/bucket
3 motor power 5.5kW
4. Machine weight 2300kg

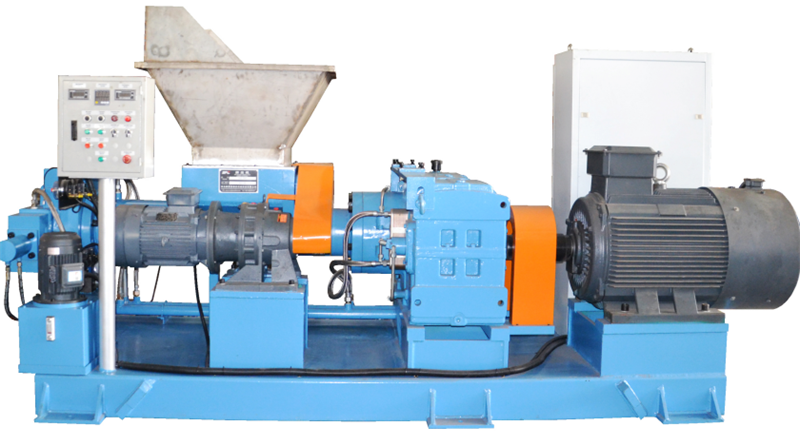

Equipment 4: XJS-250 double arm feeding extruder, quantity 1 set

Main parameters

1. Screw diameter 250mm
2. Screw length to diameter ratio L/D 5.4
3. The length of the barrel material port is 600mm
4. The maximum speed of the screw is 50r/min
5. Main motor power 110KW
6. Feeding motor power 7.5KW
7. Hydraulic motor power 3.7kw
8. Cooling water pressure 0.2-0.4MPa
9. The external dimensions are approximately 4800 × 2150 × 1850mm

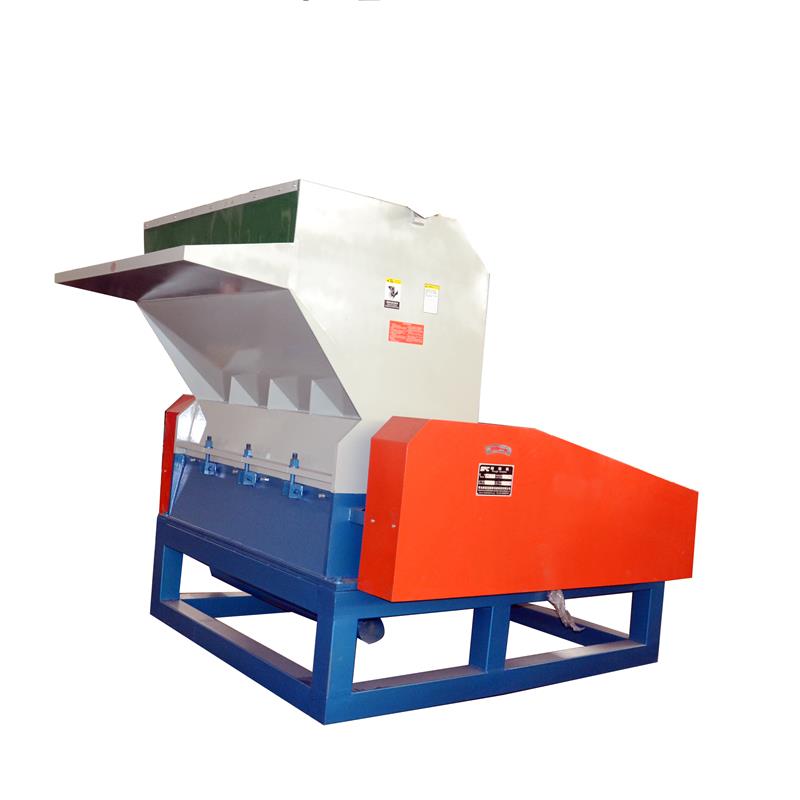

Equipment 9: CP-1500 coarse crusher, quantity 1 unit

Main parameters

1. Motor 75kw
2. Rotating diameter Φ 560, length 1500mm
3. The size of the crushing chamber is 1500 * 580
4. Moving blade 3 * 5, static blade 4
5. Feeding port size 1500x560mm
6. Size: 2200 * 2300 * 2500
