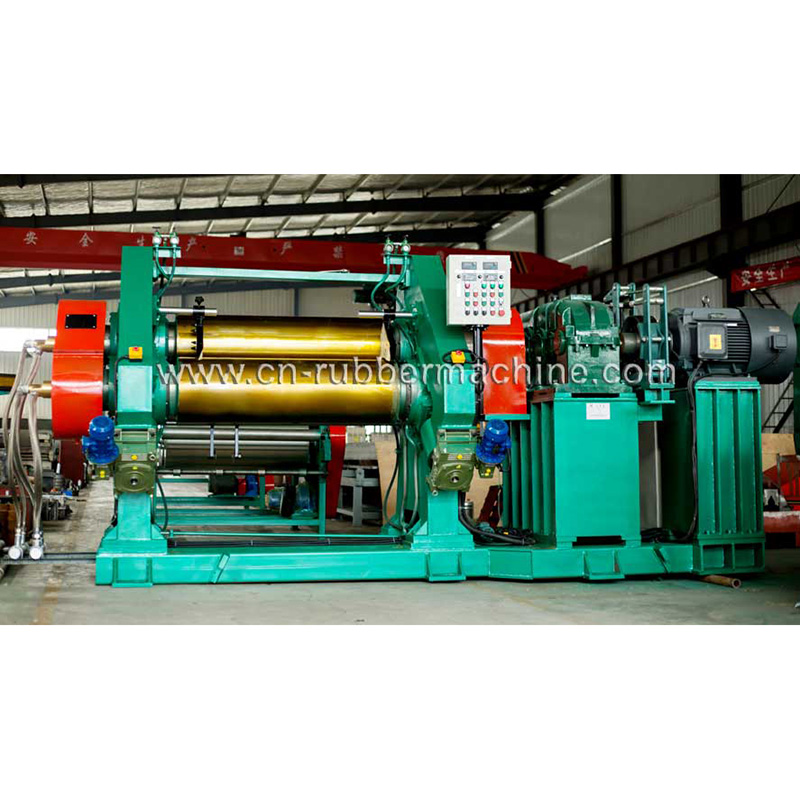

Three Roll Rubber Calendar


1.The Rubber Calender Machine is mostly used in oppression of rubber products and textile(like cotton, rayon, nylon etc. The precision Rubber Calender besides has the ordinary calender main spare part and the equipment, increased the guarantee rolling precision installment.

2. We have three-roll, four-roll and two-roll calender, should any of items be of interest to you, please contact me for further details.

3. Rubber Calender Machine is according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film.

Slide left & right to view full parameters

Parameter/Type XY-3I 630
XY-3L 630
XY-3Γ630		 XY-3I 1120A
XY-3Γ 1120A
XY-3L 1120A		 XY-3I 1400 XY-3I 1500 XY-3I 1730 XY-3I 2130 XY-3I 2430
Roll Diameter (mm) 230 360 400 450 610 710 810
Roll Working Length (mm) 630 900 1400 1500 1730 2130 2430
Roll Ratio 1:1:1
1:1.42:1		 1:1:1
0.733:1:1
0.733:1:0.733		 1:1:1
1:1.383:1.383
1:1.383:1		 1:1:1
1:1.5:1		 1:1:1
1:1.4:1		 1:1:1 1:1:1
1:1.5:1
Middle Roll Speed (r/min) 0.8-8 3-21.06 3-26.39 2.62-26.2 5.4-54 8-50 2-20
Adjusting Nip Range (mm) 0-7 0-10 0-10 0-6 0-20 0-20 0.5-25
Min. Product Thickness (mm) 0.2 0.2 0.2 0.2 0.15 0.15 0.5
Calendaring Product Width (kg) 100-500 500- 1200 1400 1400 1900 2150
Motor power (KW) 7.5 45 55 75 132 185 220
Dimension (mm) 3168×890×1830 5330×1640×2120 6500×1500×2440 7420×2200×2900 7010×3950×3730 7650×4560×4080 9300×3150×5200
