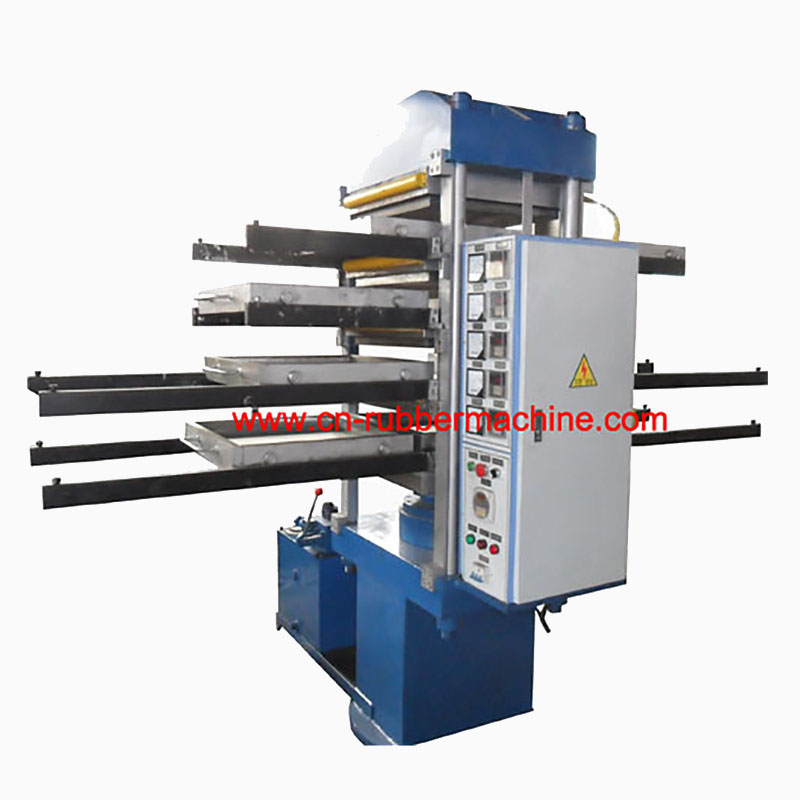

Rubber Tile Vulcanizing Press

Model XLB-D550×550×4 XLB-D650×650×2
Total pressure (MN) 0.5 1.35
Plate size (mm) 550×550 (Q235) 650×650 (Q235)
Daylight (mm) 150 200
Daylight no. 4 2
Piston stroke (mm) 400 400
Motor power (KW) 3.0 3.0
Overall size (mm) 2200×900×2200 2200×1200×2400
Weight (kg) 3600 5000


Application and features:

1. This Rubber Tile Vulcanizing Press is specially used to produce rubber tiles.

2. Each layer is matched with two sets of moulds, so it can be vulcanized batch by batch for better efficiency.

3. The Rubber Tile Vulcanizing Press is adopted with manual mould push-out device, so the operation is more convenient.
