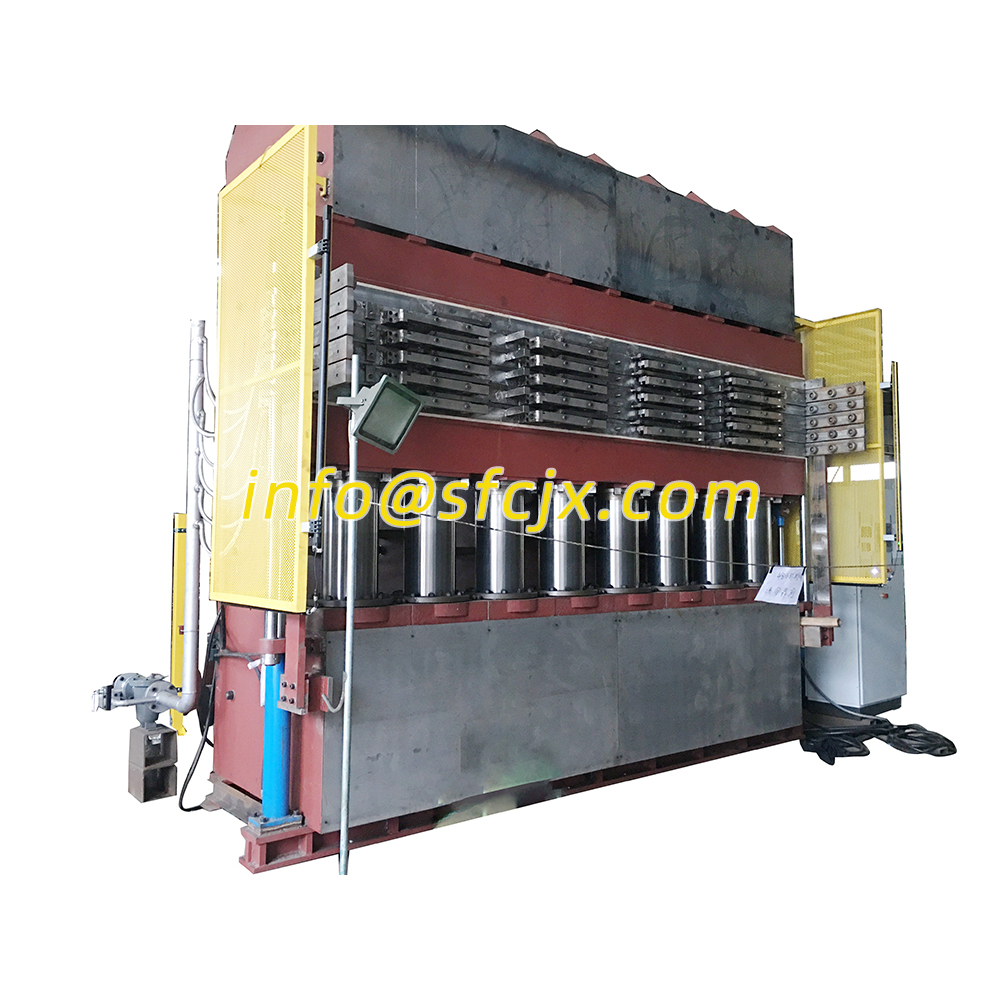

Tyre Tread Vulcanizing Press

Introduction:

1. 4 dual-action cylinders with movable beam, which rise and fall quickly to generate opening force, reducing electricity consumption and preventing hydraulic pressure oil used from getting hot;

2. Pneumatic rotating mechanism is adopted to achieve multi-step deflation;

3. Automatic mold forward/backward, or squared axis cantilever hanging heating platen applicable for rapid left and right feeding and discharging by adding clamping robot;

4. PLC control method.

5. Unit area pressure no less than 45kg/cm² To ensure the density of the tire-surface

6. Multiple options of layer number and tables;

7. Hydraulic pressure components and electrical equipment imported or of local famous brand, to ensure reliable performance.

Type	XLE-Q3000x1000x5	XLE-Q3600x450x5	XLE-Q5500x360x5
Total Pressure (Tons)	1200	650	800
Plate Size (mm)	3000x1000x60	3600X450X70	5500x360x70
Daylight (mm)	250	250	250
Layer NO.	5	5	5
Piston Stroke (mm)	250	250	250
Open/Close Mould Speed (mm/s)	≥15	≥15	≥15
Cylinder Diameter (mm)	360	300	250
Cylinder NO.	8	6	8
Motor Power (KW)	16.5	16.5	25.5
