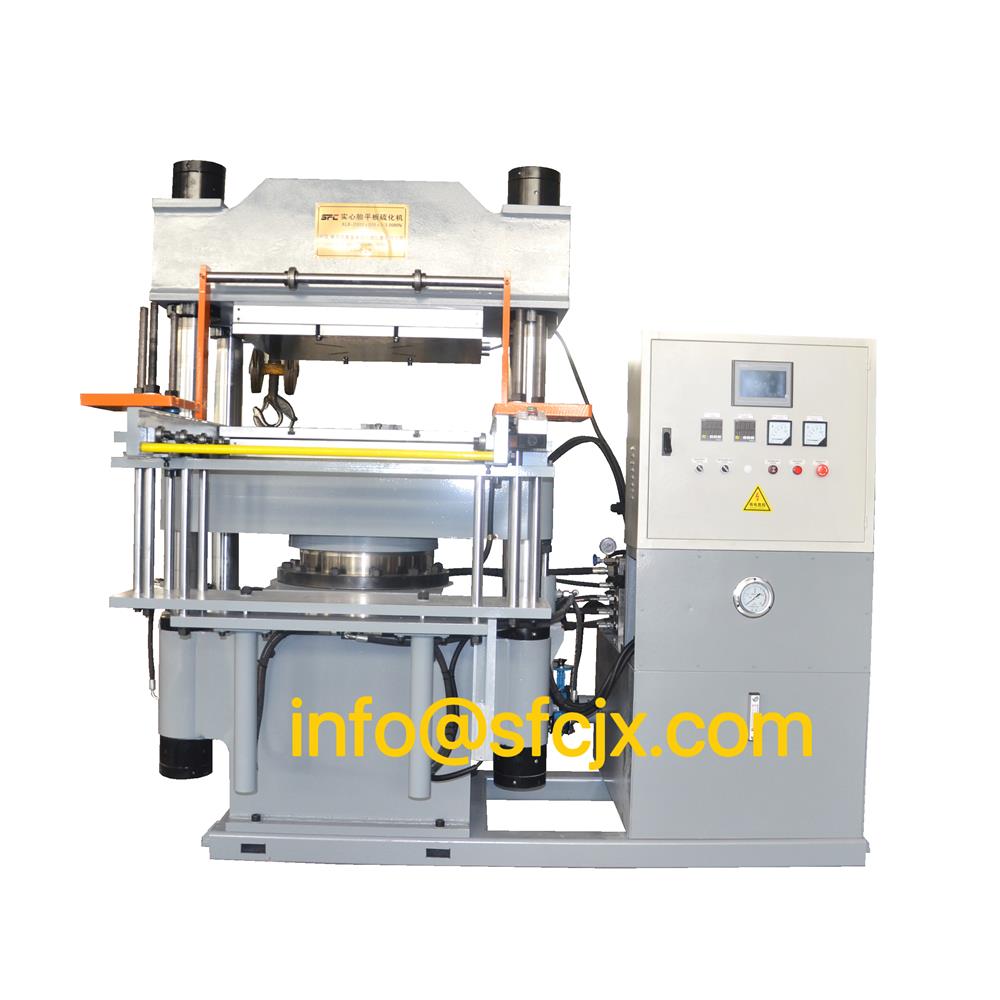

2RT Rubber Vulcanizing Press


Description:

1. Our four-column Rubber Vulcanizing Press is ideal for pressing, straightening, moulding, trimming, compressing
and pulling-out of bush, assembly and disassembly of parts.

2. Specially designed for ease of operation, the operator has access from all the sides of the machines.

3. The multiple columns provide increased output with great accuracy.
Our range of Rubber Vulcanizing Press can be custom designed to meet the specific requirements of our clients.

Slide left & right to view full parameters

Parameter \ Type XLB240×240×2 XLB350×350×2 XLB400×400×2 XLB500×500×2 XLB600×600×2/4 XLB700×700×2 XLB750×850×2/4 XLB900×900×2Q
Total Pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20 1.60 2.00
Plate Distance (mm) 125 125 125 125 125 125 200 300
Working Layer NO. 2 2 2 2 2-4 2 2-4 2
Unit Area Pressure
of Hot Plate(Mpa) 		2.60 2.04 3.13 2.52 2.77 2.45 2.51 2.47
Plunger Stroke (mm) 250 250 250 250 250/400 250 400 400
Heating Mode Electricity Electricity Electricity/
Stream 		Electricity/
Stream 		Electricity/
Stream 		Stream Electricity/
Stream 		Stream
Motor Power (KW) 2.2 2.2 2.2 2.2 2.2 2.2 3 5.5
Size:(L×W×H)(mm) 1200×350
×1300 		1400×480
×1380 		1600×500
×1480 		1750×600
×1540 		1880×720
×1680 		2000×850
×1750 		2250×1200
×2200 		1400×900
×2400
(Mainframe)
