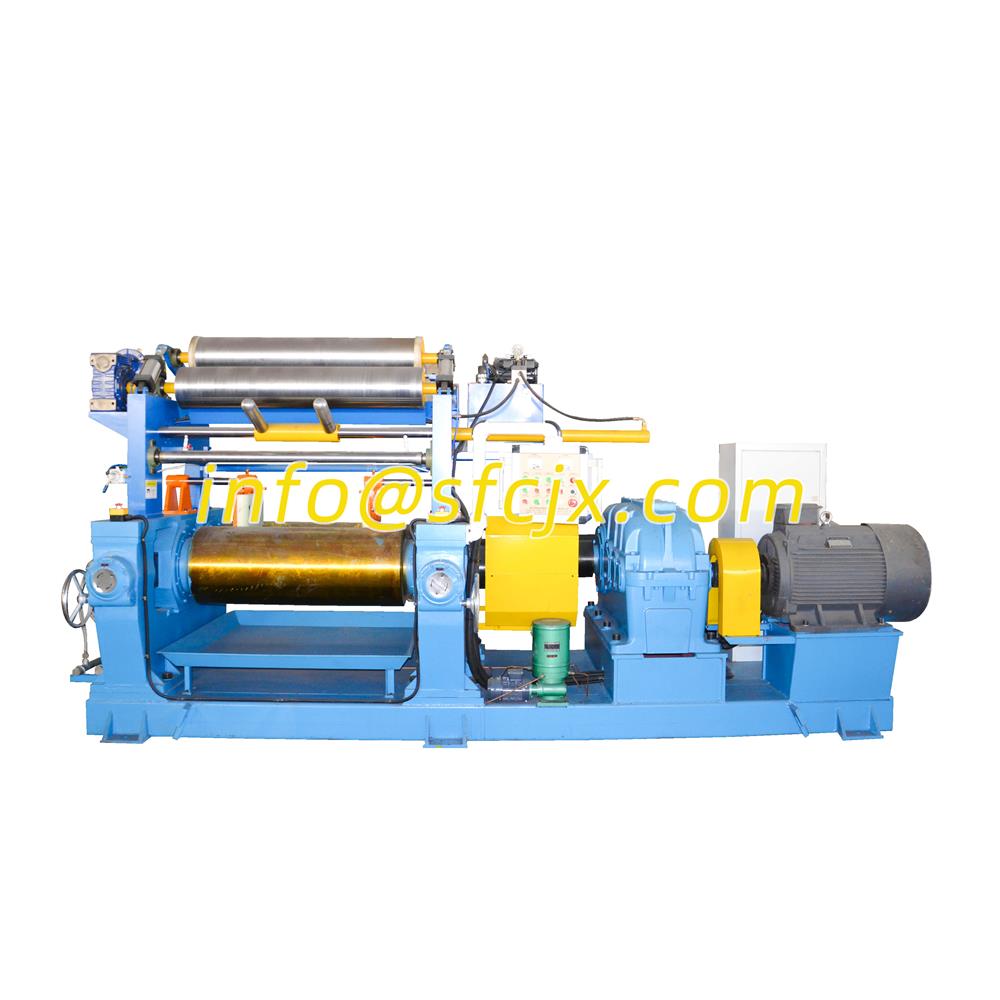

Rubber Mixing Mill with Blender

This rubber mixing mill is 22inch, double drive and exported to Korean machine, with following characters:

1. Bedplate is as a whole structure, using steel welding operation, convenient installation without foundation, cover small area and difficult break etc.

2. This Single Dual-drive Rubber Mill using hard-toothed speed reducer and hydraulic block rubber board device.

3.This Single Dual-drive Rubber Mill equipped with stock blender, adopting hydraulic pressure place glue and avoiding the kind of old-fashioned screw copper block structure of much wearing parts.

4. This Mixing Machine using single motor and double drive machine, rubber mixing quantity is increased by 35% than that of ordinary.

5. This Single Dual-drive Rubber Mill is the oil pump mechanical lubrication, eliminating old style artificial oil cup lubrication.

6. The mixing machine is human-oriented design, electric control cabinet move to the region space which workers can touch, it is easy to operate.

7. This mixing machine cans equipment with electric adjustment and hydraulic rubber knife.

Technical Parameter:

Item	XK-230	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560	XK-550B	XK-660
Diameter of rolls (mm)	230	250	300	360	400	450	560/510	550	660
Length of Rolls (mm)	600	620	750	900	1000	1200	1530	1500	2130
Front Roll Surface Speed(m/min)	10.21	14.1	15.1	16.25	18.65	24.26	27.72	27.94	28.6
Friction Ratio	1:1.19	1:1.17	1:1.25	1:1.25	1:1.27	1:1.2	1:1.22	1:1.24	1:1.09
Max. nip (mm)	7	8	10	10	10	15	15	15	15
Capacity per Batch(kg)	6-10	8~15	15~20	20~25	18-35	25-50	35-50	50-60	165
Motor Power (kw)	15	18.5	22	30	37	55	90	110	245
